£2058.00
+ VAT

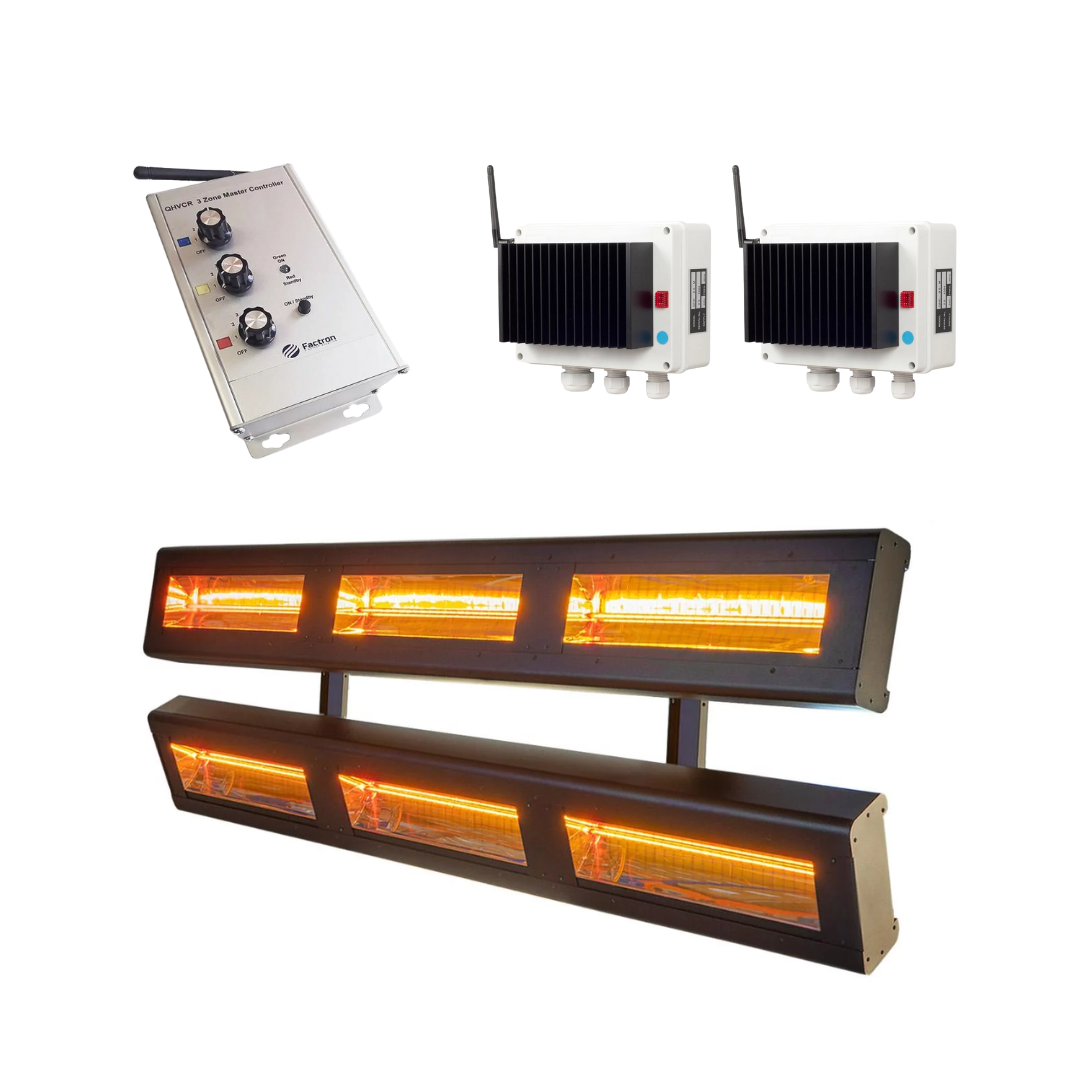

This heater pack includes the following:
The Shadow Infinity 9kW Heater is designed with two 4.5kW heaters arranged in an array and connected by two brackets. This configuration enables the heaters to be angled from a vertical mount, enhancing coverage compared to traditional horizontal installations.

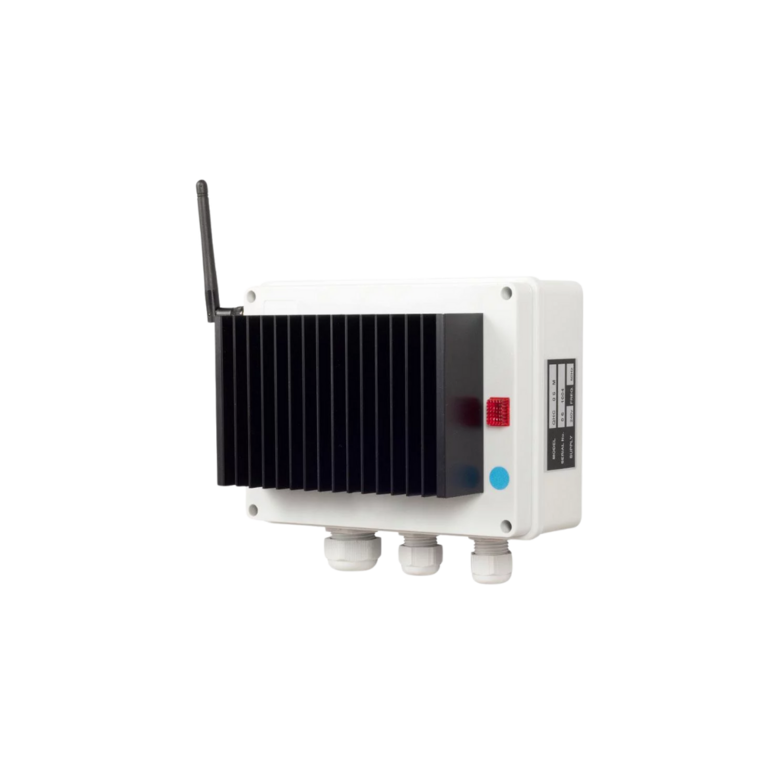

The 6kW Remote Heater Controller is a powerful RF receiver that works with the 3-zone Master Transmitter, enabling heaters up to 6kW to be grouped into zones within a 100-metre range. This setup ensures flexible, efficient, and centralised heating control.
The remote 3-zone QHVCR controller allows you to divide the heated area into three distinct zones: Blue, Yellow, and Red. Each zone can be independently controlled with five adjustable power levels: Off, 33%, 50%, 66%, and 100%, ensuring precise heat distribution.
Length 1790mm
Width 255mm
Depth 110mm

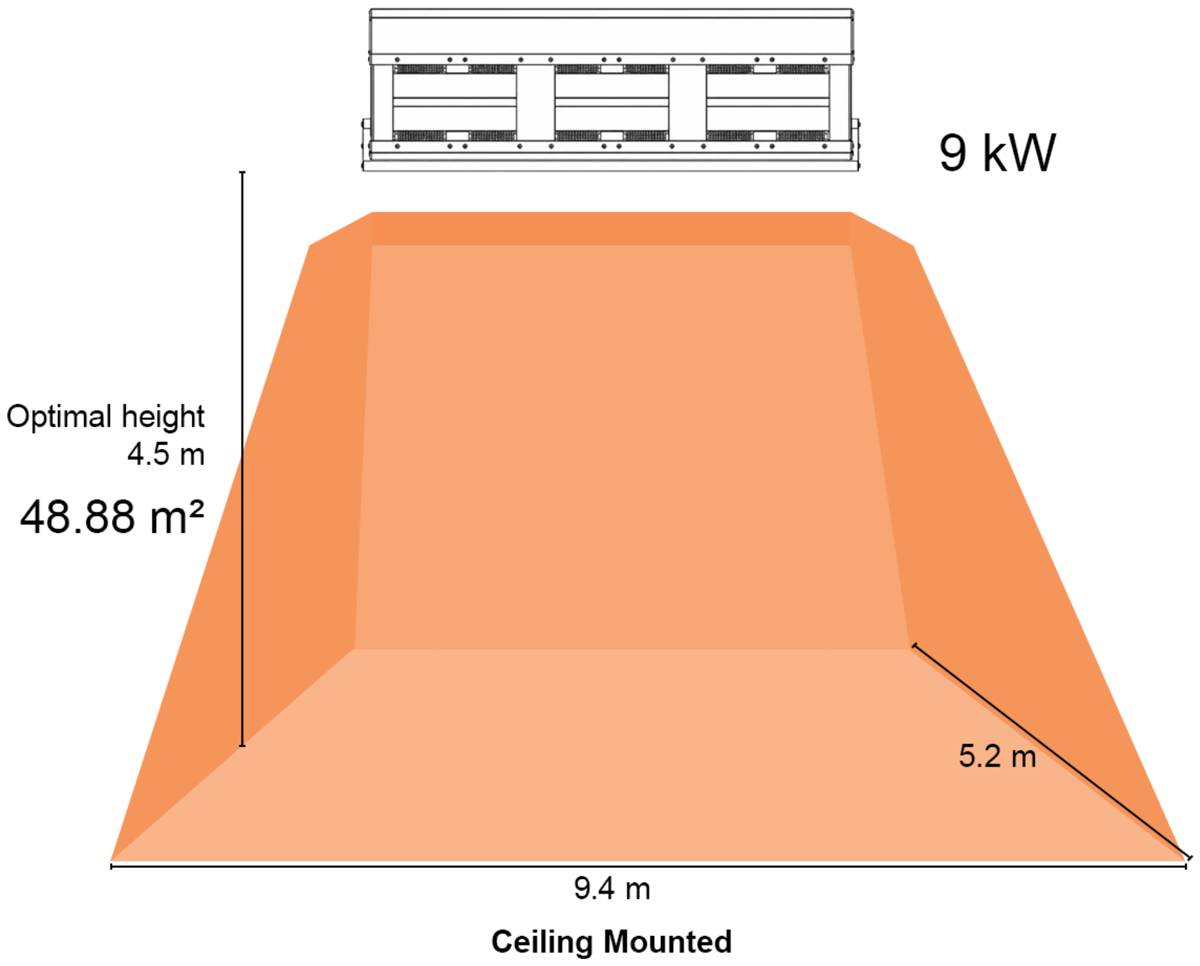

Typical coverage areas obtained from the 9kW Shadow Infinity model
Note the coverage area is a guide only and is influenced by a number of factors such as the overall ceiling height, draughts from open doors and windows and quality of insulation in the area. Whilst the inner areas will obtain instant heat the outer areas will take longer to warm up. Heat is also subjective and different people feel warm at different heat levels and people who are sat still will need more heat than more active workers.
| Dimensions (W) mm | 255 |
|---|---|
| Dimensions (H) mm | 184 |
| Dimensions (L) mm | 1790 |
| Coverage (M sq.) | 48.88 |
| Phase supply | Single and 3 Phase |
| Lamps x power (kW) | 6 x 1.5 |
| Total Power (kW) | 9 |
| Voltage (V) | 220-240 |
| Current per phase (A) | 20 |
| Min. height from floor (cm) | 350 |
| Min. distance from ceiling (cm) | 50 |
| Min. distance from side wall (cm) | 300 |
| Weight without guard (kg) | 26 |
| Warranty (years) | 5 |
| Lamp Length (mm) | 530 |
