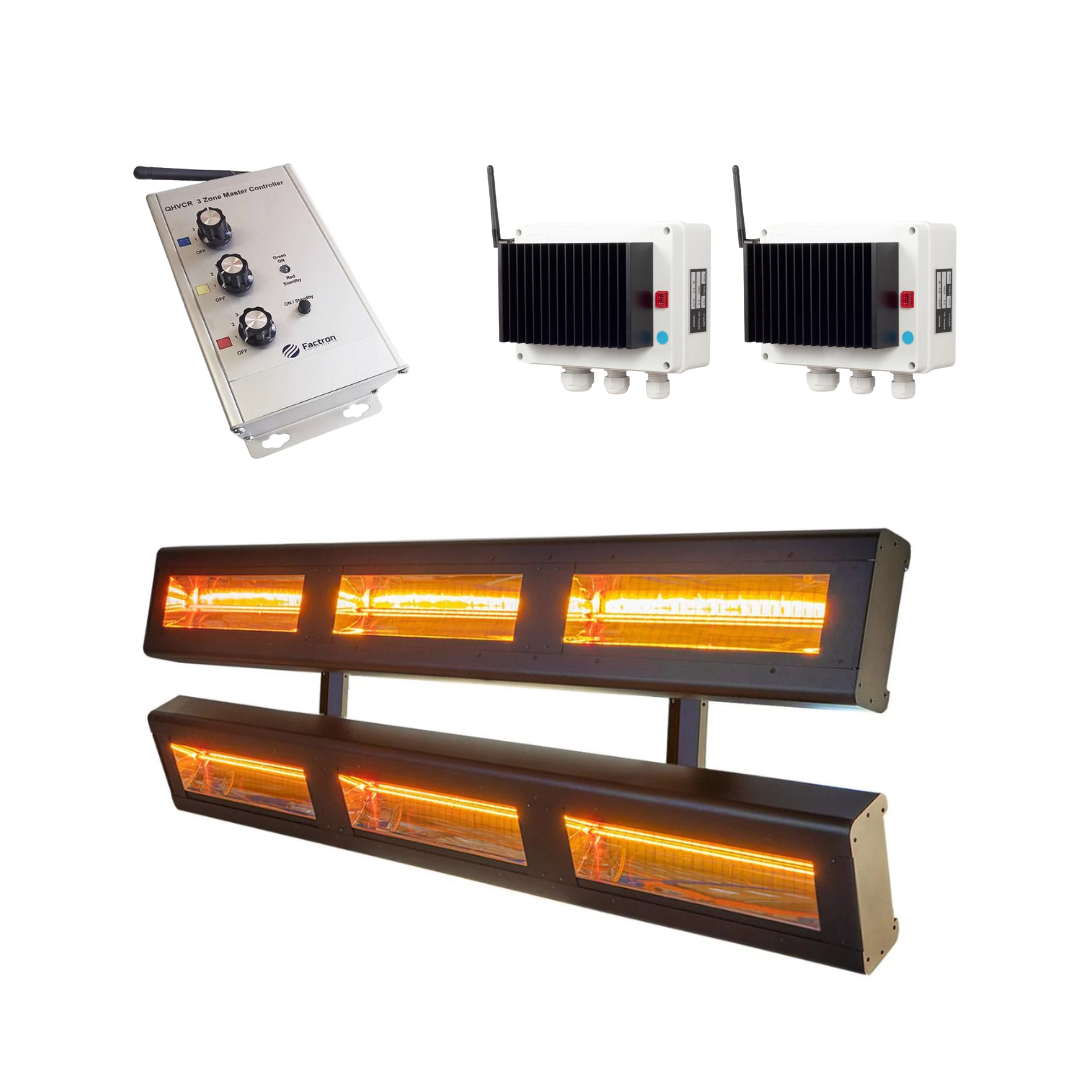

This heater pack includes the following:
The Shadow Infinity 12kW Heater features two 6kW heaters arranged in an array, connected by two brackets. This design allows the heaters to be angled from a vertical mounting position, providing greater coverage than traditional horizontally mounted heaters.
The 6kW Remote Heater Controller is a wireless RF receiver designed to manage infrared heaters up to 6kW. It pairs with the 3-zone Master Transmitter, allowing multiple controllers within a 100-metre range to be assigned to a specific zone for streamlined heating control.
With the 3-zone QHVCR controller, you can split your heated space into three custom zones: Blue, Yellow, and Red. Each zone operates independently, letting you set different heat levels as needed. Choose from five power settings: Off, 33%, 50%, 66%, or 100% for complete flexibility.
Length 1790mm
Width 255mm
Depth 110mm
Typical coverage areas obtained from the 12kW Shadow Infinity model
Note the coverage area is a guide only and is influenced by a number of factors such as the overall ceiling height, draughts from open doors and windows and quality of insulation in the area. Whilst the inner areas will obtain instant heat the outer areas will take longer to warm up. Heat is also subjective and different people feel warm at different heat levels and people who are sat still will need more heat than more active workers.
| Dimensions (W) mm | 255 |
|---|---|
| Dimensions (H) mm | 184 |
| Dimensions (L) mm | 1790 |
| Coverage (M sq.) | 65.55 |
| Phase supply | Single and 3 Phase |
| Lamps x power (kW) | 6 x 2 |
| Total Power (kW) | 12 |
| Voltage (V) | 220-240 |
| Current per phase (A) | 26 |
| Min. height from floor (cm) | 350 |
| Min. distance from ceiling (cm) | 50 |
| Min. distance from side wall (cm) | 300 |
| Weight without guard (kg) | 26 |
| Warranty (years) | 5 |
| Lamp Length (mm) | 530 |
